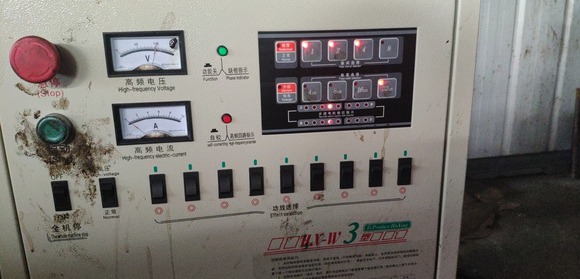

The emergency stop is a critical safety device on a wire EDM machine: it cuts power to protect both the machine and the operator when something goes wrong. When pressing the stop button does nothing, or when the machine stops by itself without anyone touching the button, the fault usually lies in the stop switch or the relay inside the control cabinet.

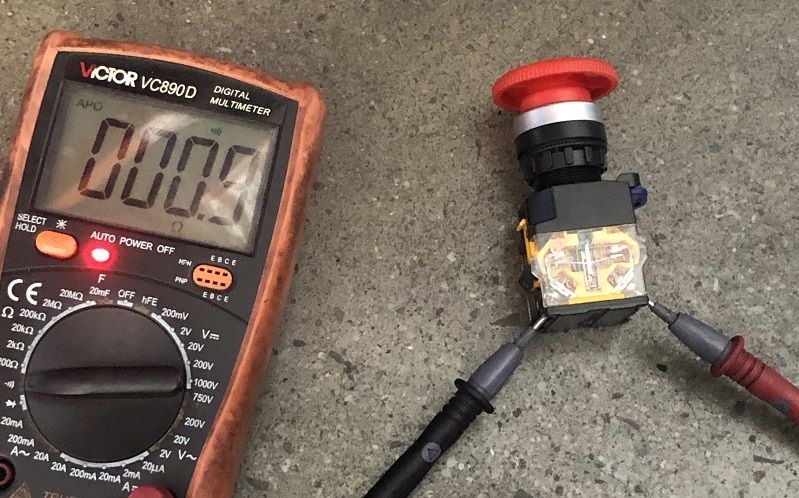

1. Check the emergency stop switch. The switch is normally a red, normally-closed push button. With the button released, power flows through the cabinet normally; pressing it opens the input circuit and shuts the whole cabinet down. Test it with a multimeter set to the continuity range. If the switch does not open or close correctly, replace it.
2. Check the relay. Follow the wiring from the stop switch to its relay and test the relay with the multimeter as well. A frequent cause of failure is oil contamination inside the cabinet: when oil gets into the relay, the contact spring sticks and the relay no longer operates, leading to a dead stop button or false tripping. Clean the relay contacts, confirm the spring resets freely, and replace the relay if necessary.
3. A practical check sequence. Work through these steps in order:
- Confirm the stop button is actually released (not pressed).
- Test the stop switch and the relay separately with a multimeter.
- Inspect the cabinet for oil ingress and check whether the relay spring is sticking.
- If the fault is still not found, have a qualified electrician inspect the machine. Working inside the cabinet involves high voltage — always switch off and lock out the power before touching anything.
In the vast majority of cases the problem is confined to these two components. Following the steps above resolves most emergency-stop faults on the spot. Never open the cabinet while the machine is energized.
