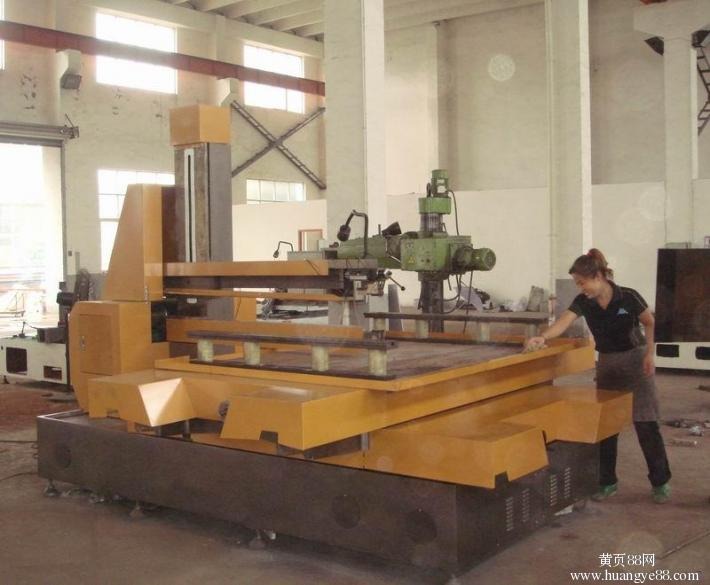

Wire EDM Machine Vibration: Checking the Environment and the Machine

Wire EDM machines are precision equipment, and vibration during operation directly affects machining accuracy. Sources of vibration fall into two groups: the external environment and the machine itself.

1. External Environment

1. Nearby vibration sources. If large vibrating equipment operates nearby, add anti-vibration pads under the machine corners or dig an isolation trench.
2. Machine placement. If the floor is uneven or the machine is not level, level the machine and fit anti-vibration pads under the corners.

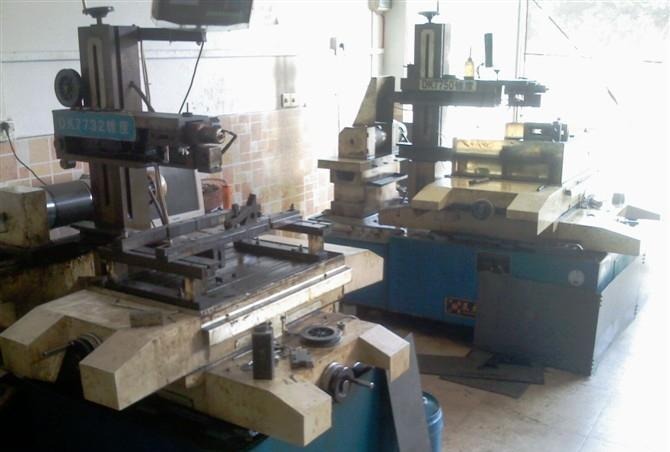

2. Machine Components

1. Ball screw bearings. Replace if damaged.
2. Spool bearings. If the left and right supports shake when the spool runs, replace the spool bearings.
3. Spool coupling. Check for clearance in the fit and for shaking at reversal.
4. Spool motor. Check whether it runs with shake or noise.
5. Wire feed screw and nut. Excessive clearance makes spool travel uneven.
6. Ball screws and stepper motors. Confirm the ball screws run clean and smooth and the screw motors run smoothly without noise.

3. Suggested Order of Work

1. Check the external environment first — nearby equipment and leveling — to eliminate basic vibration sources.
2. Then inspect the machine in the order: bearings, coupling, motor, screw and nut.
3. Vibration usually involves worn rotating parts or excessive clearance; replace damaged parts promptly.
4. If the source cannot be identified, call in professional service rather than running a faulty machine.

Summary: Deal with outside causes first, then the machine. Leveling and anti-vibration pads address the environment; checking wear and clearance addresses the components. Working through the list finds and fixes the source.
