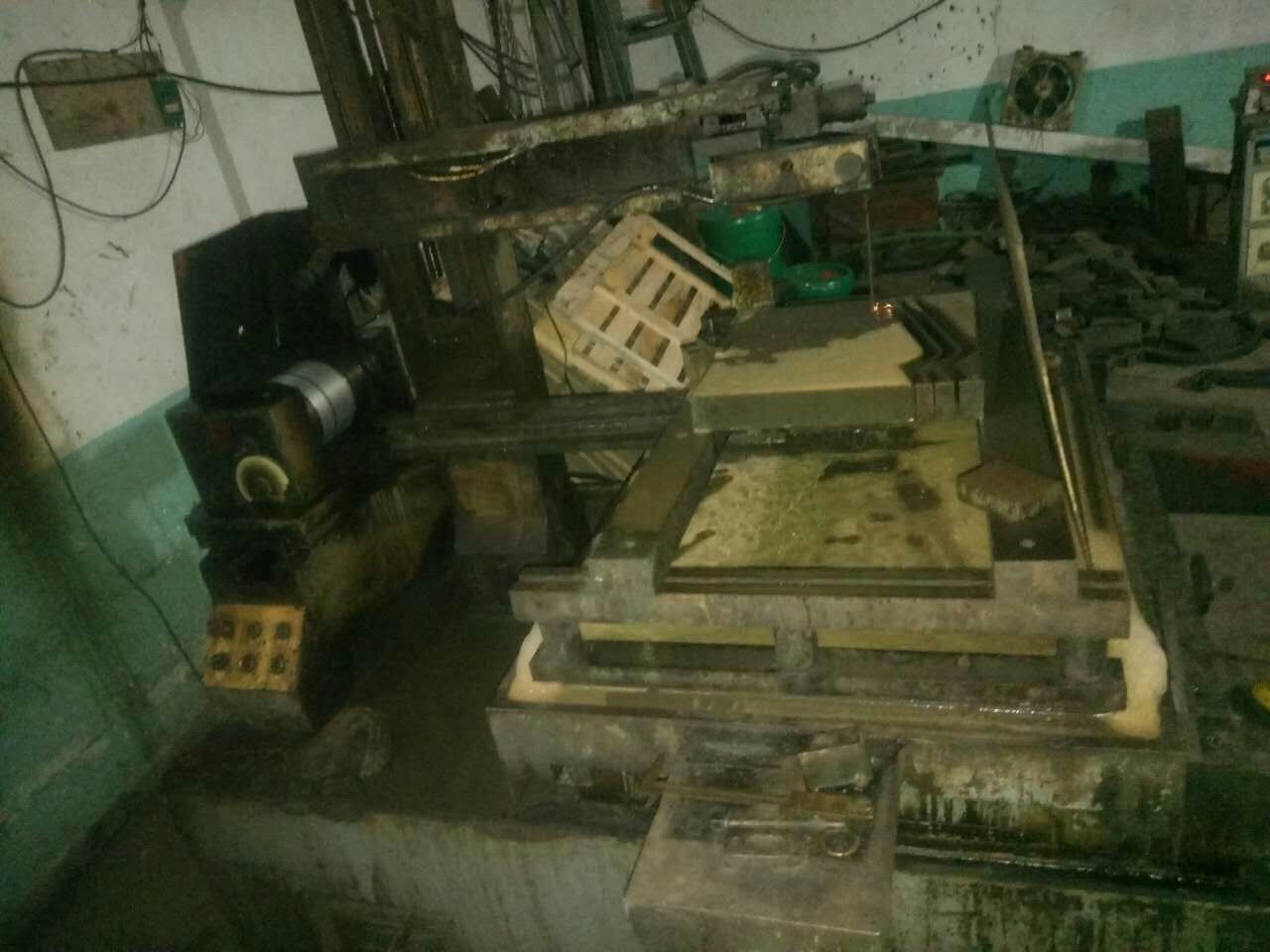

After wire EDM, parts often show surface residue — black in some cases, yellow in others, and occasionally the yellow wipes away to reveal black underneath. Understanding where the two types of residue come from makes cleaning effective and helps prevent them from forming.
1. Dielectric-Related Surface Residue (Removable by Cleaning)
The residue is tied to the working fluid — the same effect appears with traditional oil-based soluble oil, just in a different color:
- Oil-based dielectric: leaves a black, sticky oily sludge on the part after machining.
- Water-based dielectric: leaves a yellowish, rust-like residue; it sticks more with poor water quality and can be removed directly with oxalic acid.
- The color difference mainly comes from the different ingredients in soluble oil versus water-based dielectric.
Cleaning method. Fresh water-based residue wipes off easily with working fluid, kerosene or a cleaning agent. Stubborn yellow residue can be cleaned with oxalic acid.
2. Surface Still Black After Cleaning (Burned by Mismatched Parameters)
If the surface stays black after wiping with a cleaning agent, the cause is in the operating parameters:
- Cause: the high-frequency parameters do not match the machine feed rate. The feed runs fast and slow by turns, the wire lingers on the surface too long, temperature rises too high, and the surface is scorched.
- Fix: align the high-frequency parameters with the feed rate; adjust the flushing flow so molten debris is washed away quickly and the surface is cooled fast to prevent burning.
3. Last-Resort Treatment
For stubborn blackened surfaces, oxalic acid pickling works well.
Summary. Surface residue falls into two categories — dielectric residue that cleans off, and scorching that needs parameter adjustment. Wash the part first to see which case applies, then fix the parameters and flushing, and the surface can be cleaned and kept from blackening again.
