Wire EDM Flushing Problems: Poor Spray Focus, Low Pressure and Filter Tank Installation

Flushing quality directly affects wire EDM results. Poor spray causes reversal marks, irregular dark-and-light water streaks and other surface defects that should never be ignored. Flushing system problems typically fall into three groups: spray that is not concentrated on the wire, low pressure and weak flow, and filter tank installation.

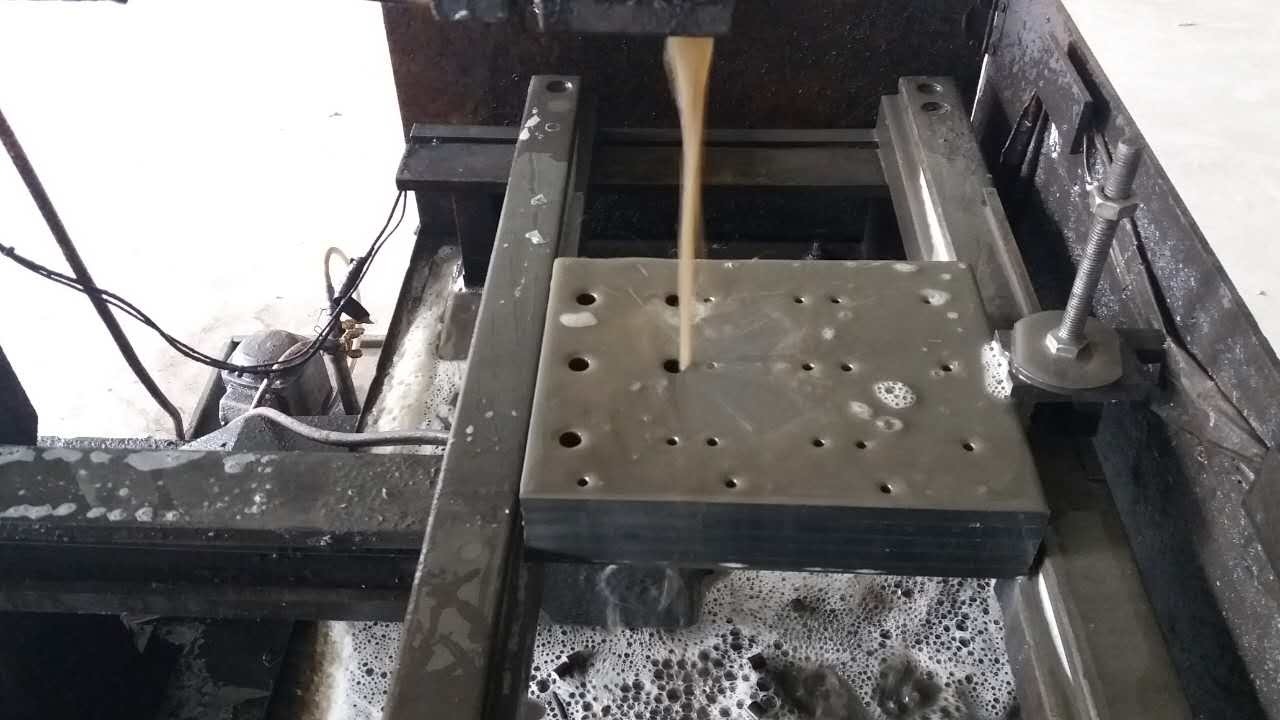

1. When the Spray Is Not Concentrated

Work through these steps:

1. Increase the flow first — simply open up the flushing flow
2. Check the flushing nozzle — if more flow does not help, the nozzle may be blocked: poke it clear, fit a new one, or swap the upper and lower nozzles
3. Check the hose — if the spray still does not focus, inspect the water line and blow it clear from the pump side with an air gun, or replace the hose
4. Simple guide trick — tear a cloth into strips, fix one strip at the nozzle and lay it onto the wire; water follows the strip directly onto the wire

2. Low Pressure and Weak Flow

1. Fit a high-pressure tank — the improvement is marked
2. Check the pump by hand: if it feels weak, the pump wiring is probably reversed; correct the connection
3. Inspect the hose for blockage and replace if needed
4. Clean the flushing nozzle if foreign matter is blocking it
5. Check the pump for seizing
6. Replace a faulty valve

3. Filter Tank Installation

The filter tank extends dielectric fluid life, raises cleanliness, strengthens flushing and chip removal, and improves surface finish. It is standard equipment on MS-WEDM and often retrofitted on HS-WEDM.

1. Seal the connections — coat all hose fittings and external-thread joints with sealant, then wind PTFE tape clockwise about eight turns
2. Fit the filter vessel — connect hoses and fittings to the vessel inlet/outlet and tighten every joint, matching the in/out ports to the mounting holes; if the angle is off, add tape to correct it so the hose meets the vessel perpendicular, and clean off any squeezed-out sealant
3. Install the pump — connect hoses and fittings to the pump ports and tighten, mount the pump on the tank lid, and align the pump holes with the hose holes
4. Connect the high-pressure line — join pump and filter vessel with the high-pressure hose, tightening so the male taper seats fully into the female tapers at both ends to prevent leaks
5. Test — after assembly, run the system at maximum pressure and confirm every joint is leak-free

Troubleshoot flushing problems in order — flow, nozzle, hose, pump, valve. On the filter tank, sealing and testing are everything. Stable flushing is the foundation of reliable chip removal, good finish and consistent machining.
